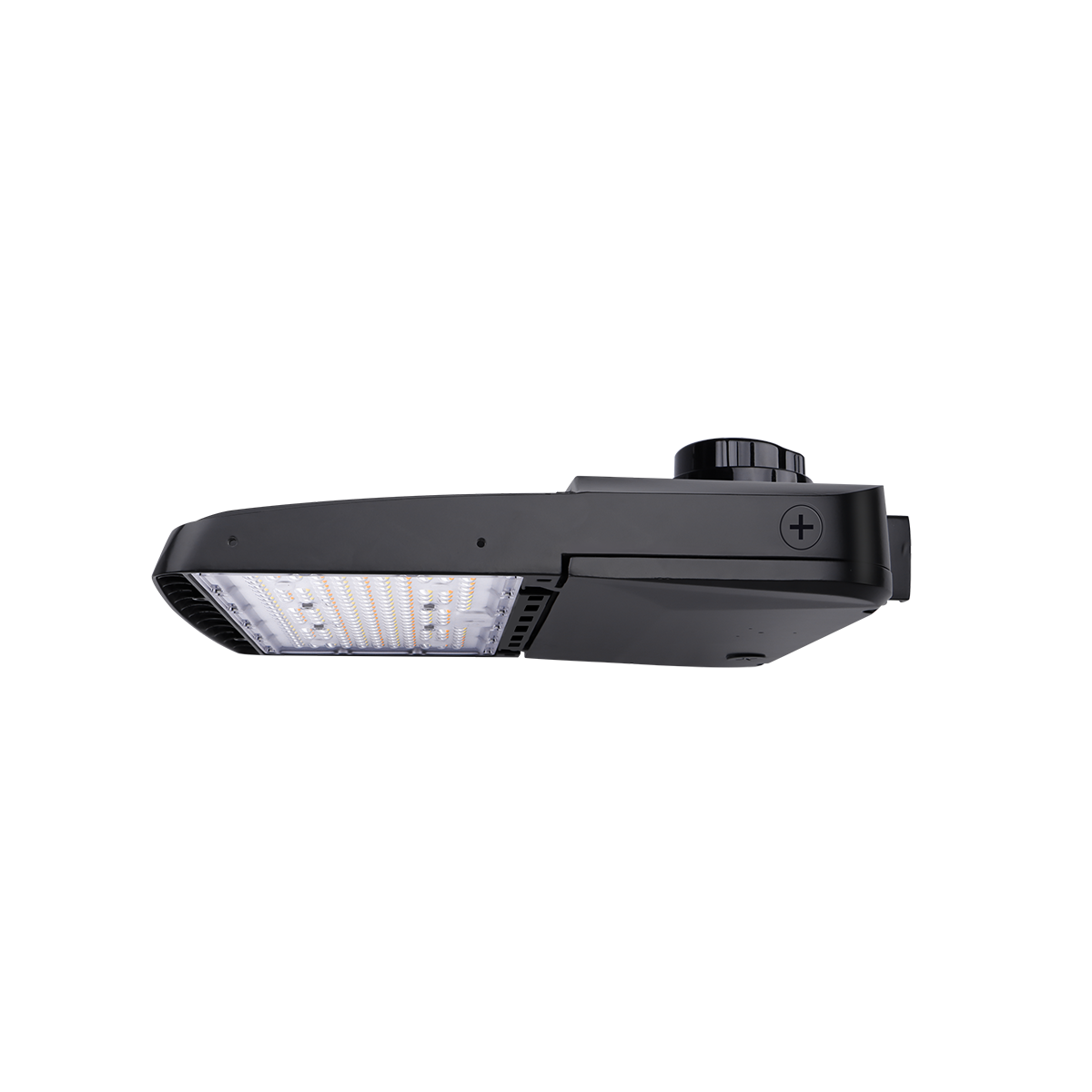

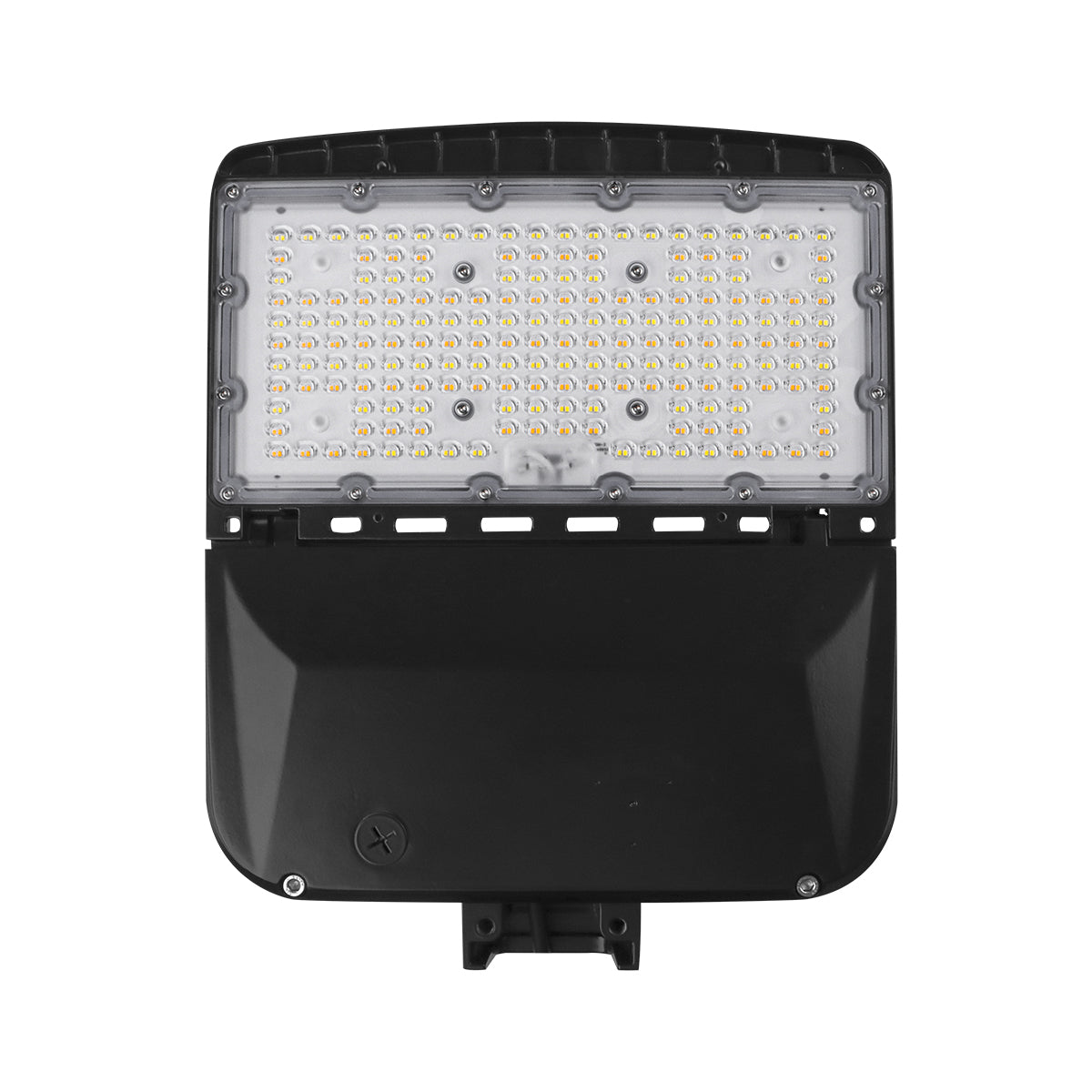

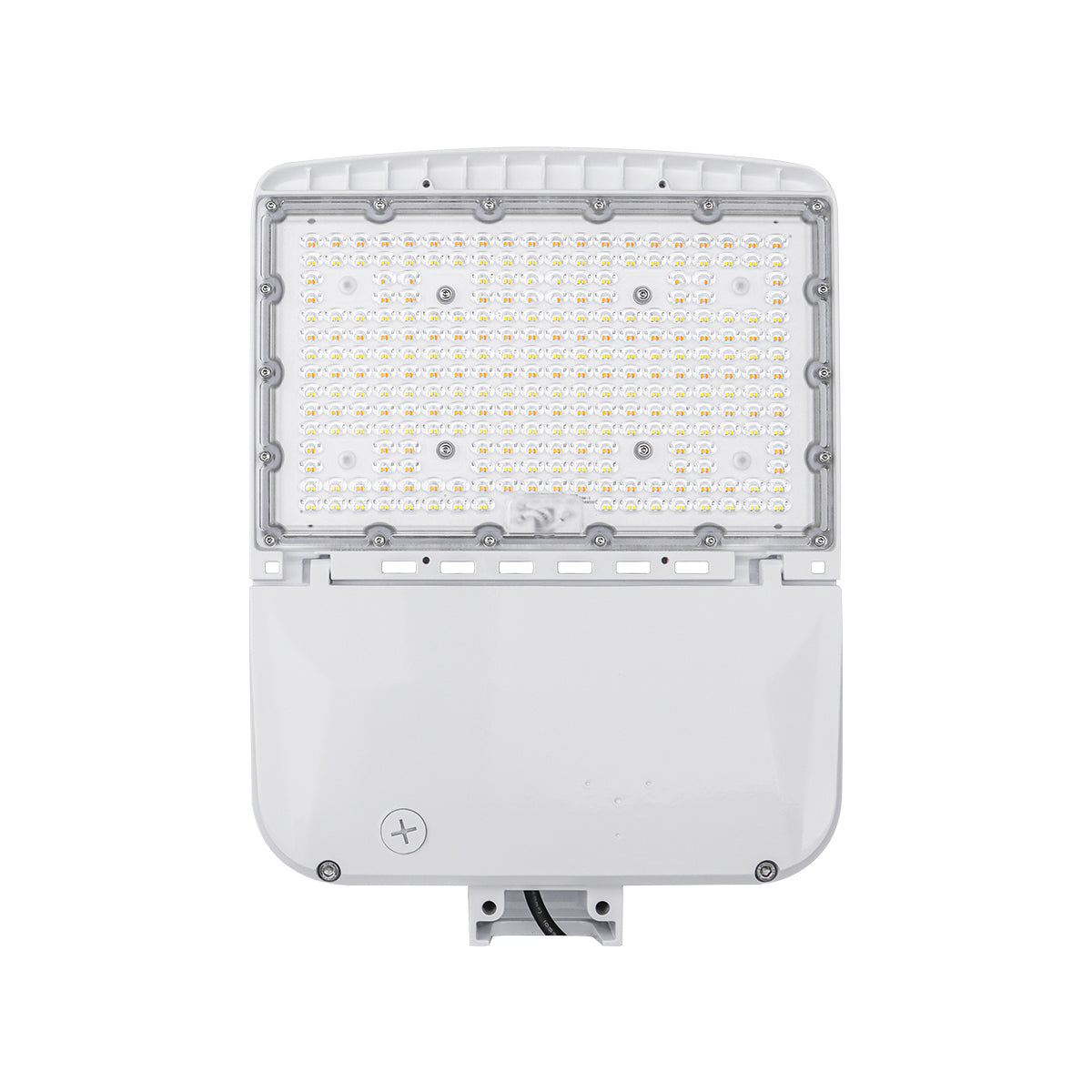

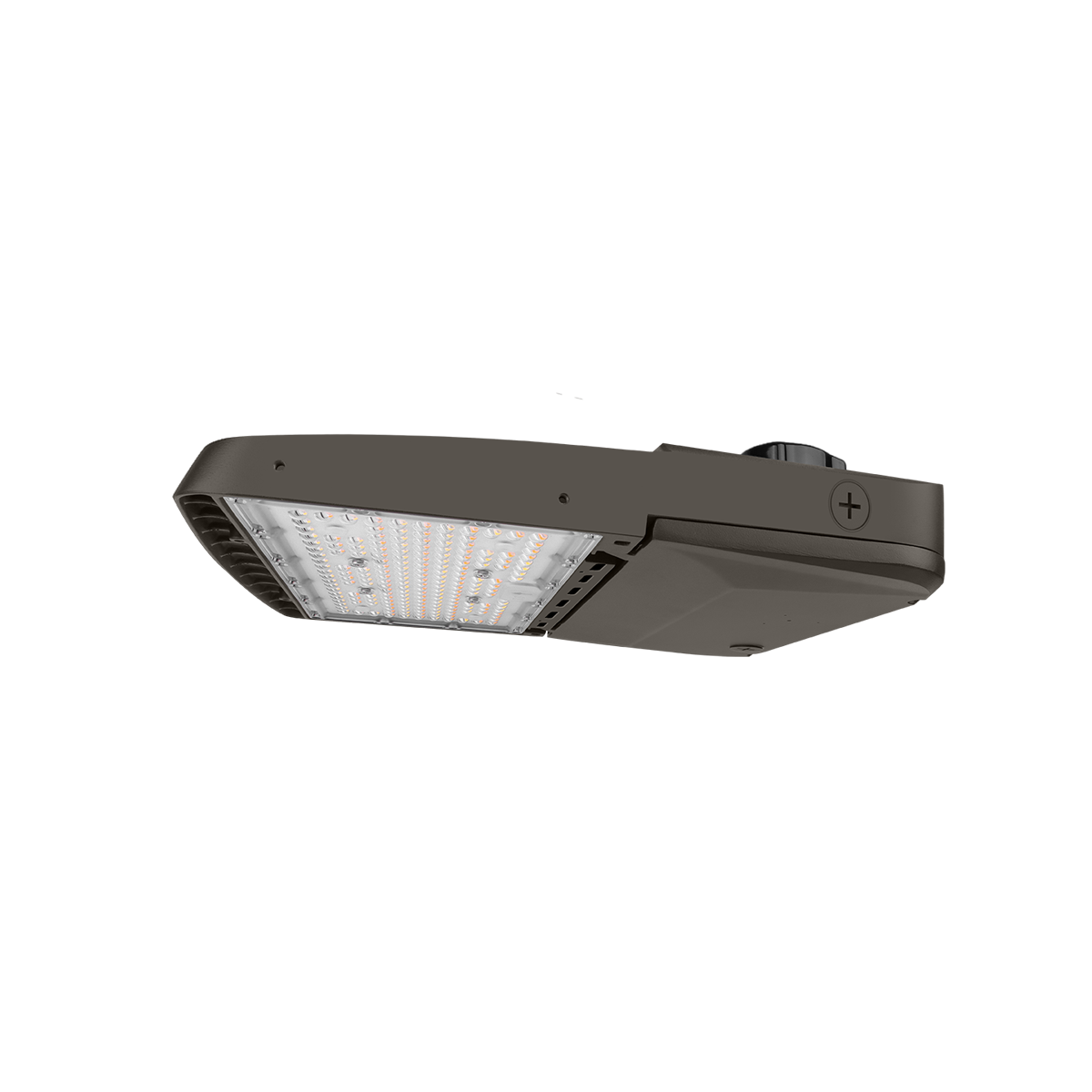

This high-efficiency, field-selectable 80–150W LED shoebox light is well suited for lower mounting heights in hospitality settings, residential areas, loading yards, driveways, and security perimeters.
- 160 lm/W: High-efficiency, cost-saving replacement for 250W–400W HIDs
- Wide range of wattage selection to match output to pole height
- Delivers up to 24,000 lumens
This high-efficiency, field-selectable 80–150W LED shoebox light is well suited for lower mounting heights in hospitality settings, residential areas, loading yards, driveways, and security perimeters.
- 160 lm/W: High-efficiency, cost-saving replacement for 250W–400W HIDs
- Wide range of wattage selection to match output to pole height
- Delivers up to 24,000 lumens
Choose options
Specs
| Wattage(s) | 80/100/120/150W |
| Replaces Wattage(s) | 250W to 400W |
| Light Output |
3000K: 11,600/14,500/17,400/21,750 lumens 4000K: 12,800/16,000/19,200/24,000 lumens 5000K: 12,000/15,000/18,000/22,500 lumens |
| Luminous Efficacy (lm/W) | 145-160 lm/W |
| Average Lamp Life |
L90: 47,000 hours L70: 54,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Light Distribution Pattern |
Type III (T3)
Learn More
×

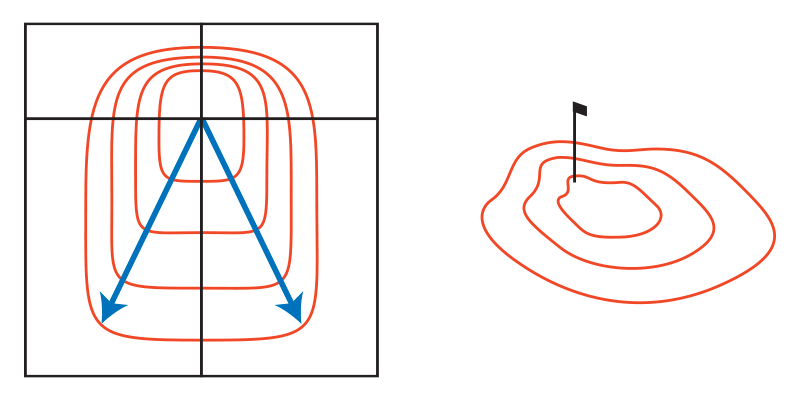

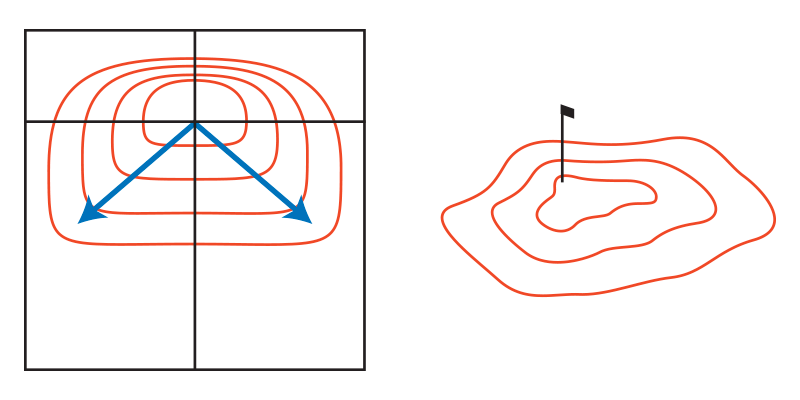

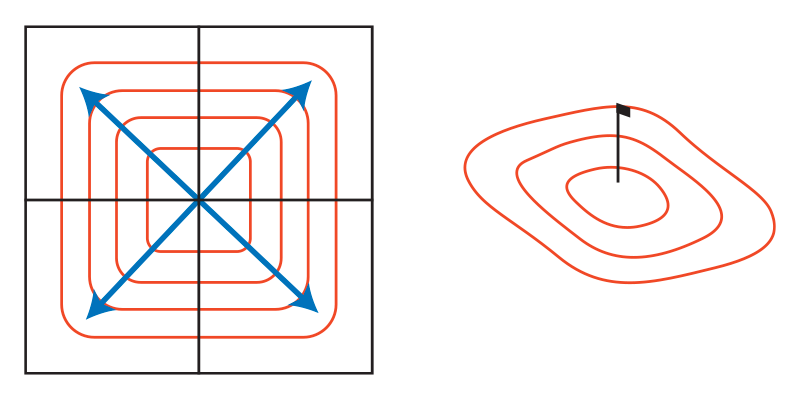

Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Installation | Pole Mount, Wall Mount, Slipfitter, Trunnion Mount |
| EPA (Effective Projected Area) | See spec sheet |
| Working Environment | Outdoors |
| Enclosure Rating | Wet Location |
| LED Type | 2835 |
| Input Voltage | 120-277VAC |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.95 |
| Surge Protection | 10kV |
| Temperature Rating | -40°F to 113°F |
| Housing Material | Die-cast aluminum |

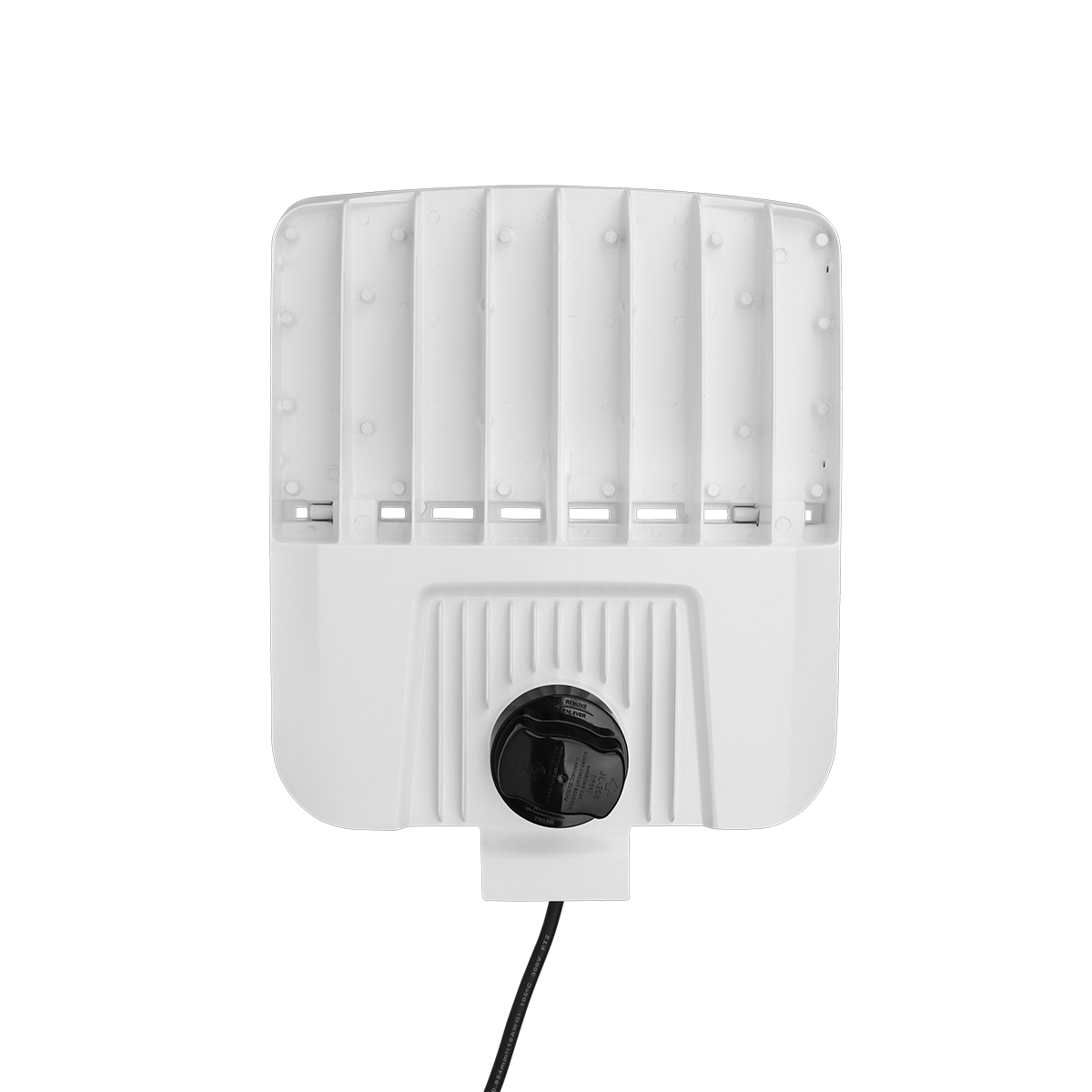

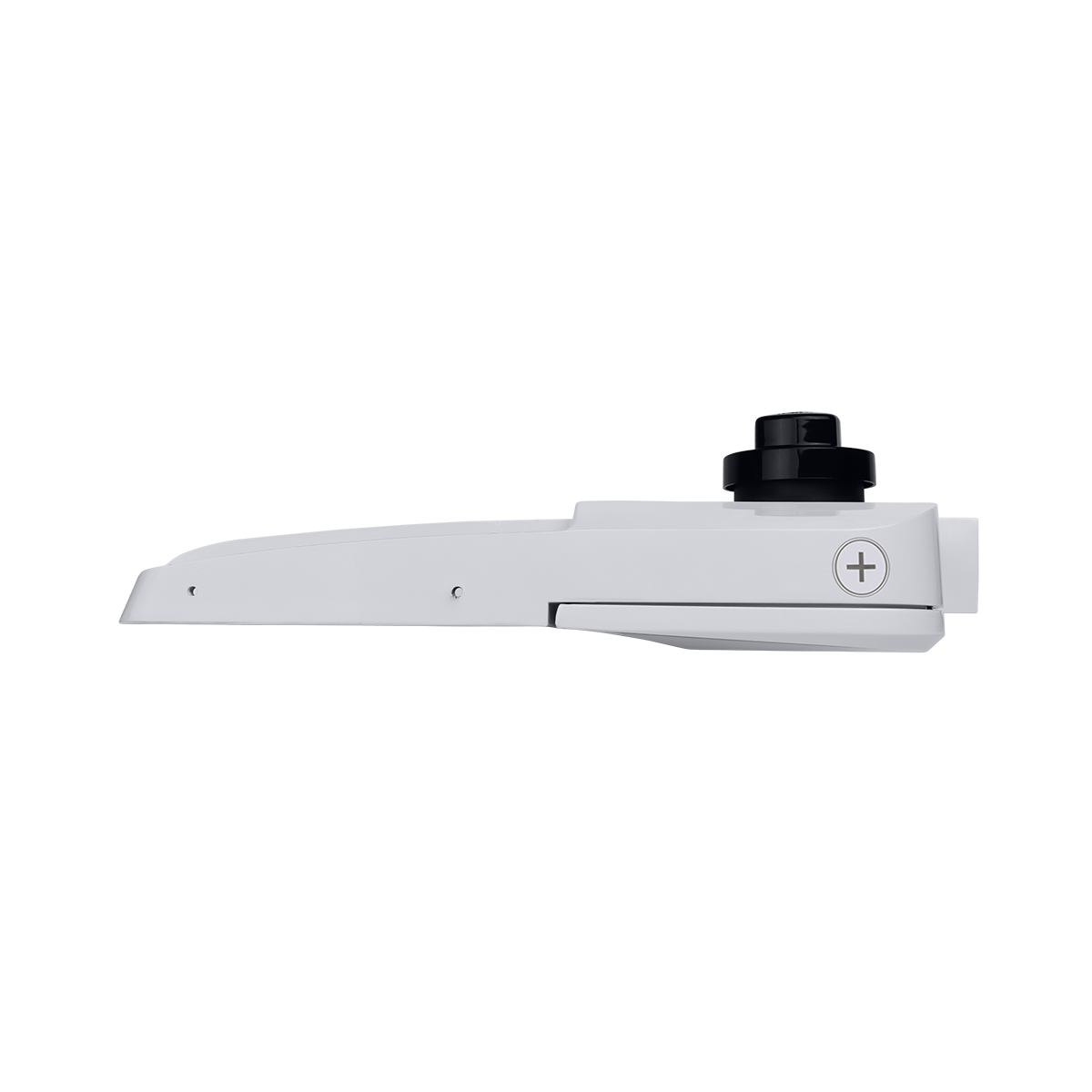

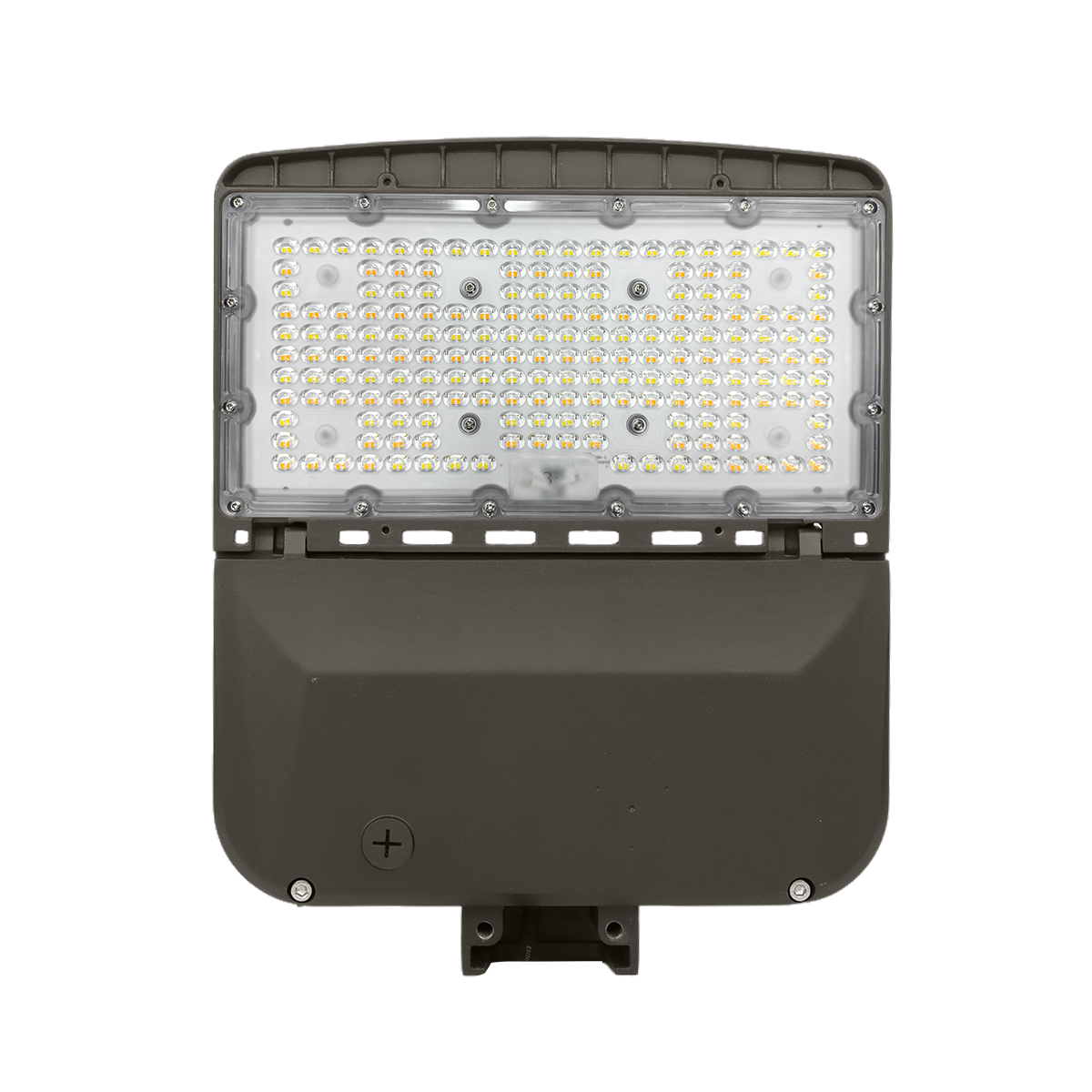

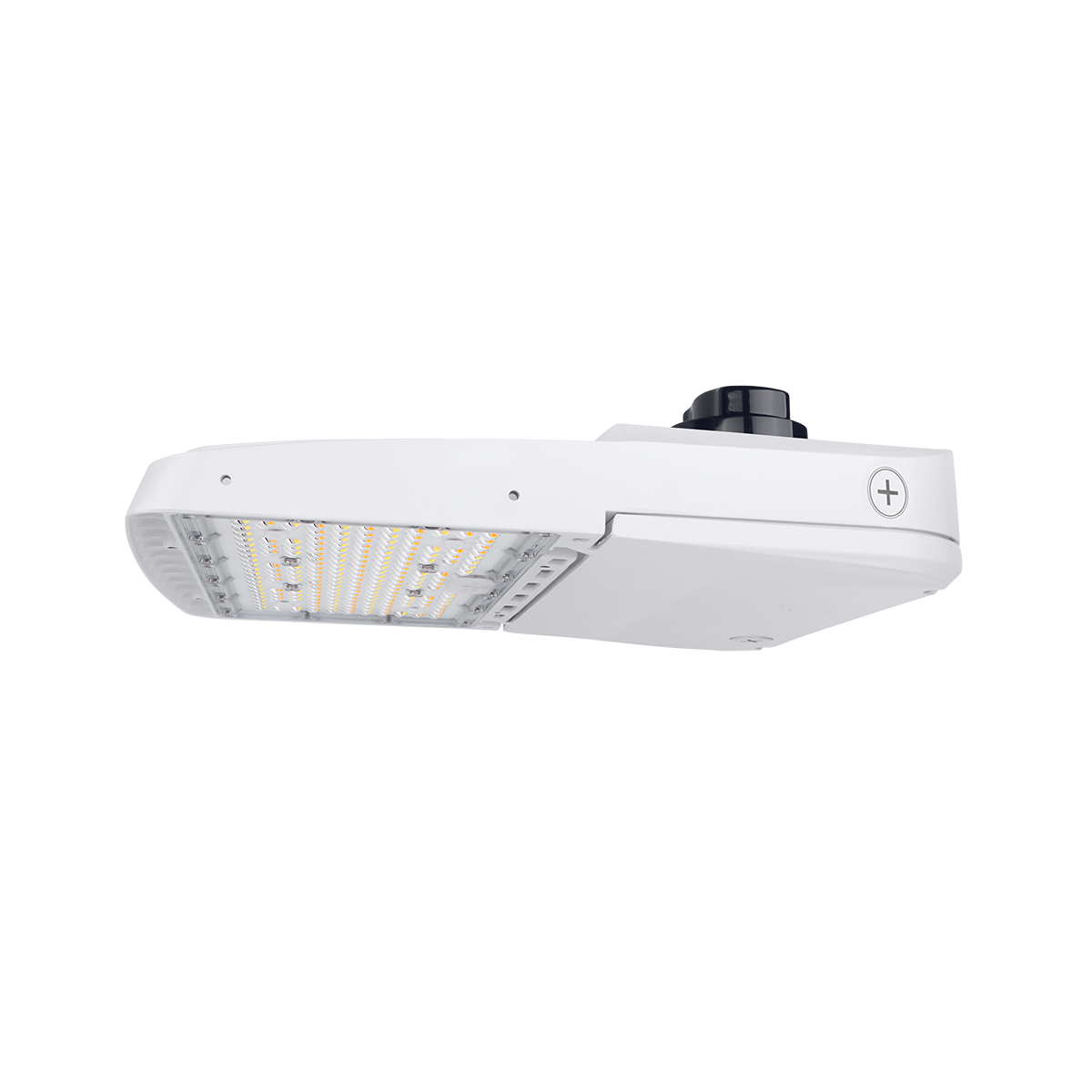

| Housing Color | Dark Bronze, Bright White, or Matte Black |

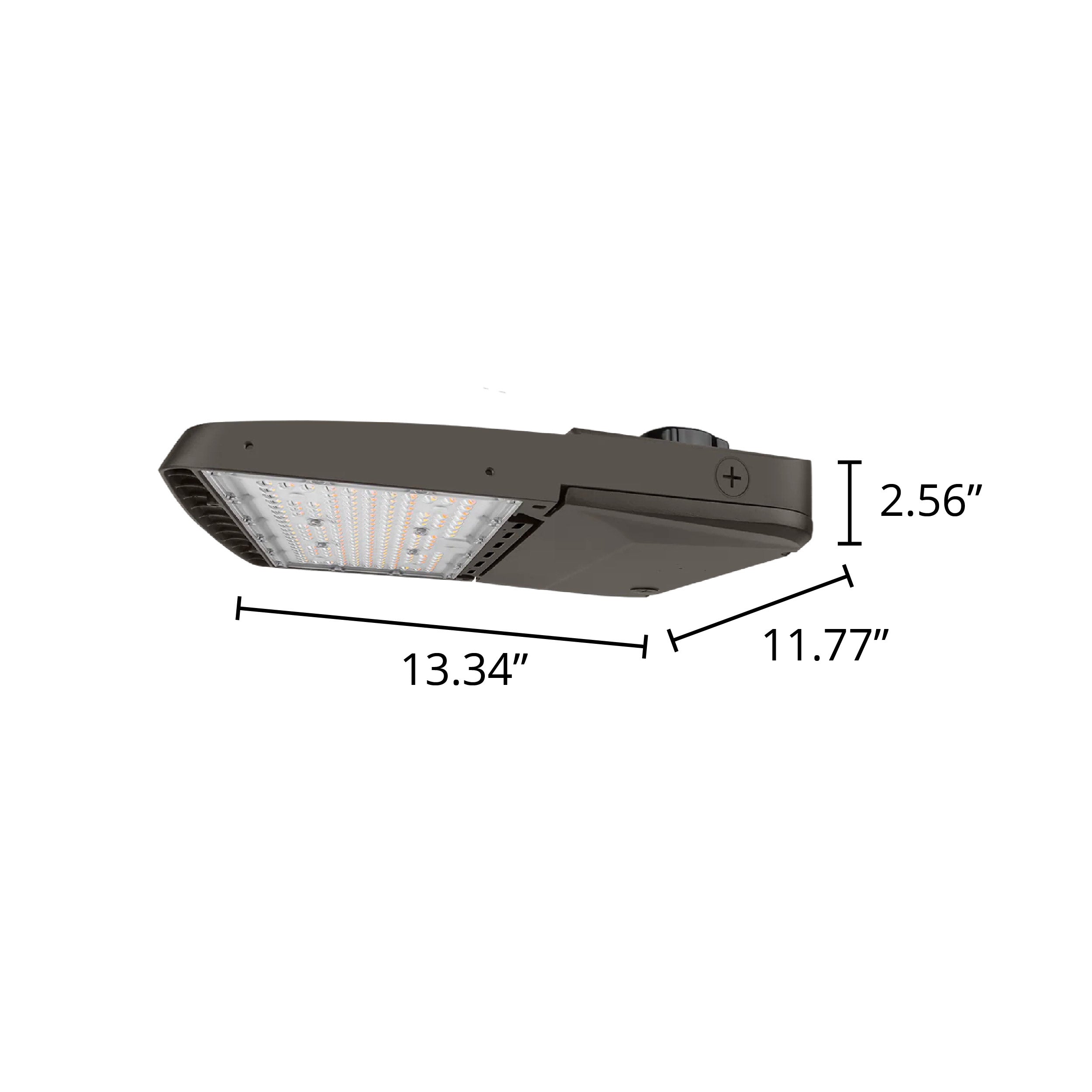

| Dimensions | See spec sheet |
| Weight | 7.2 lbs |
| Certification | DLC Premium, UL |
| Warranty | 5 Years |
| Additional Specifications | Fixture comes standard with receptacle and shorting cap. Photocell, also available, can be easily installed in the field. |
Data SheetDetails

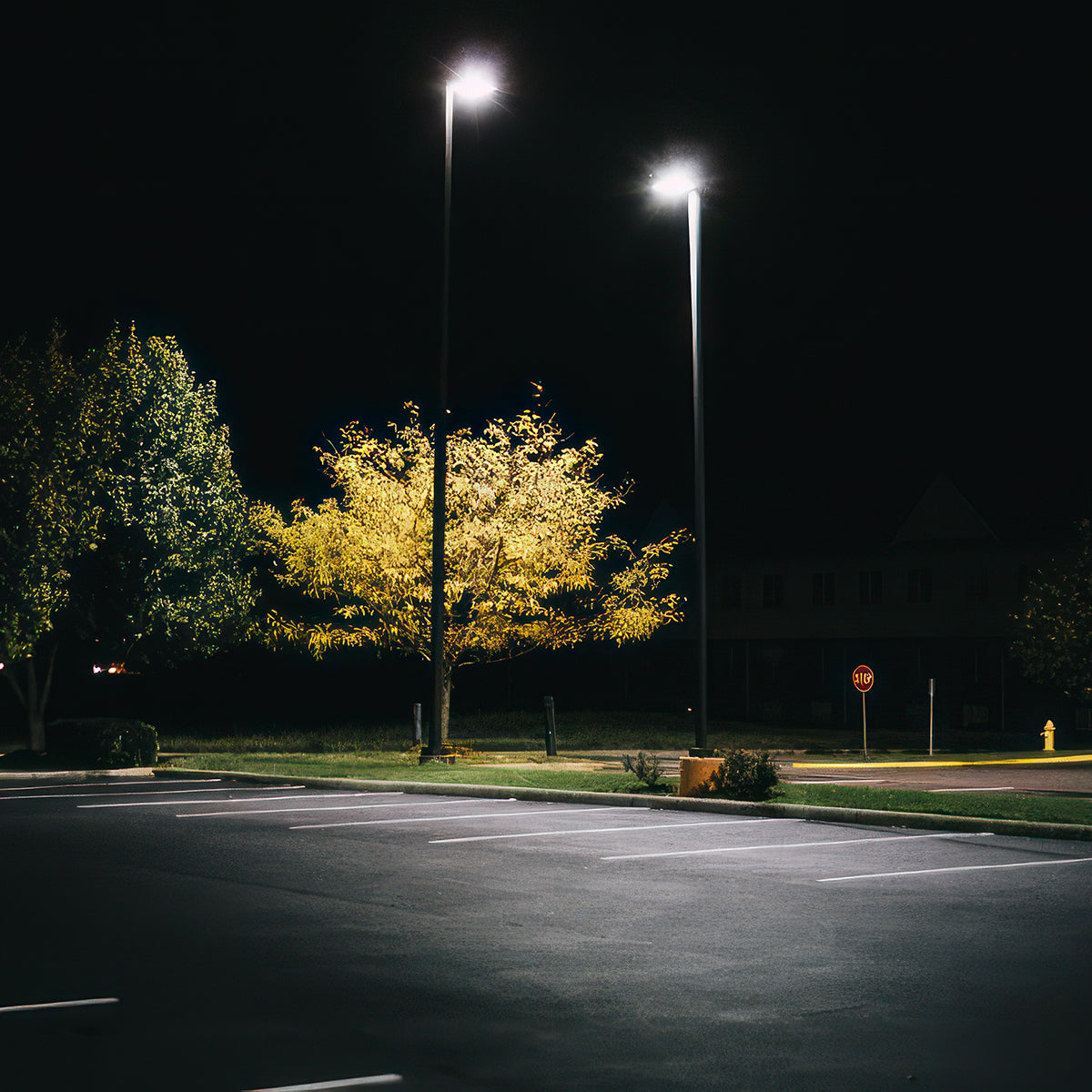

A Light for Just About Any Parking Lot or Outdoor Area
Select the Light Output and Light Tone During Install:
- Choose from a wide range of output levels from 11,600 to 24,000 lumens.
- Choose between warm, neutral, and cool white light for each area.
Select the Best Finish for Your Application: Dark bronze, bright white, or matte black.
Select from 6 Mounting Options: Available under the accessories tab.

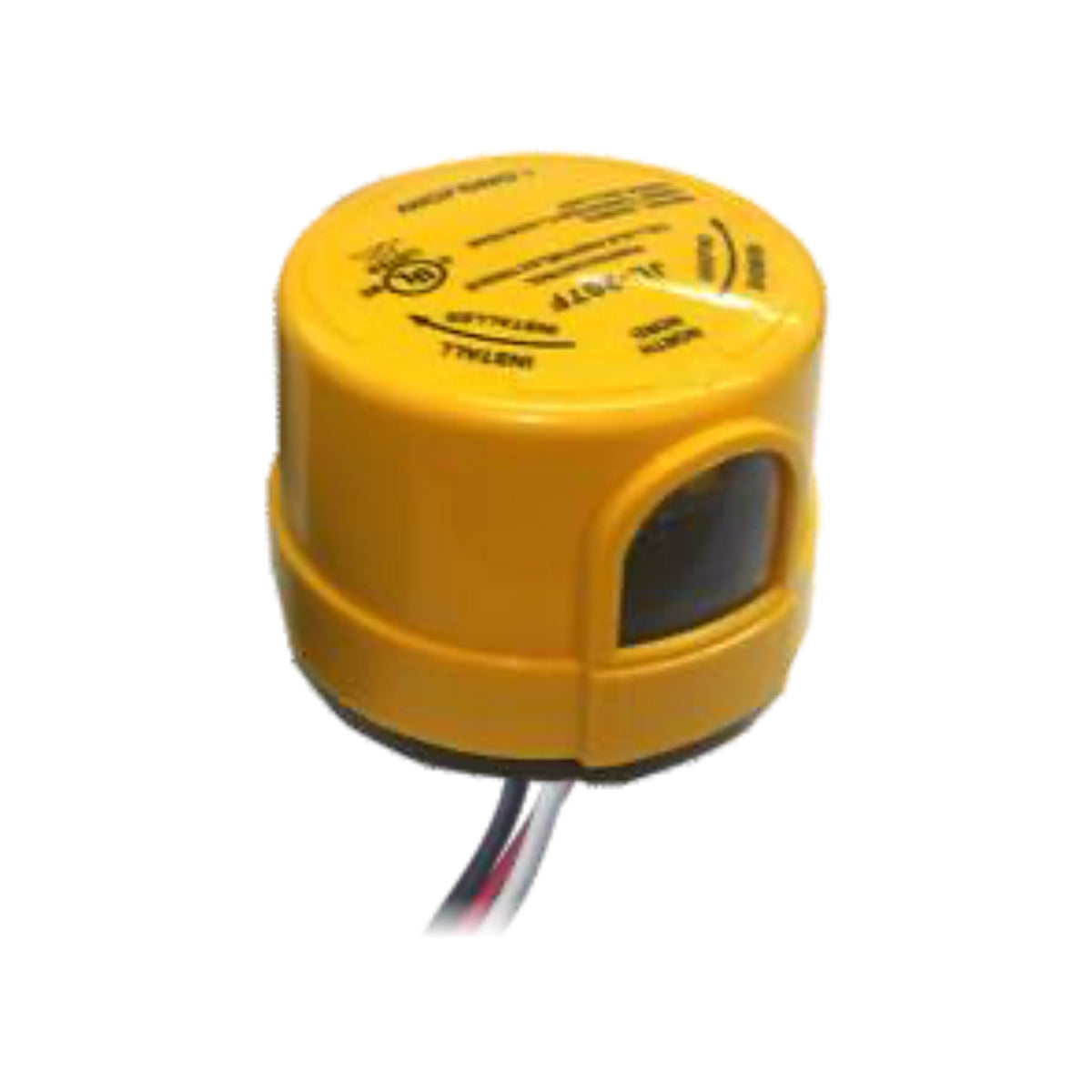

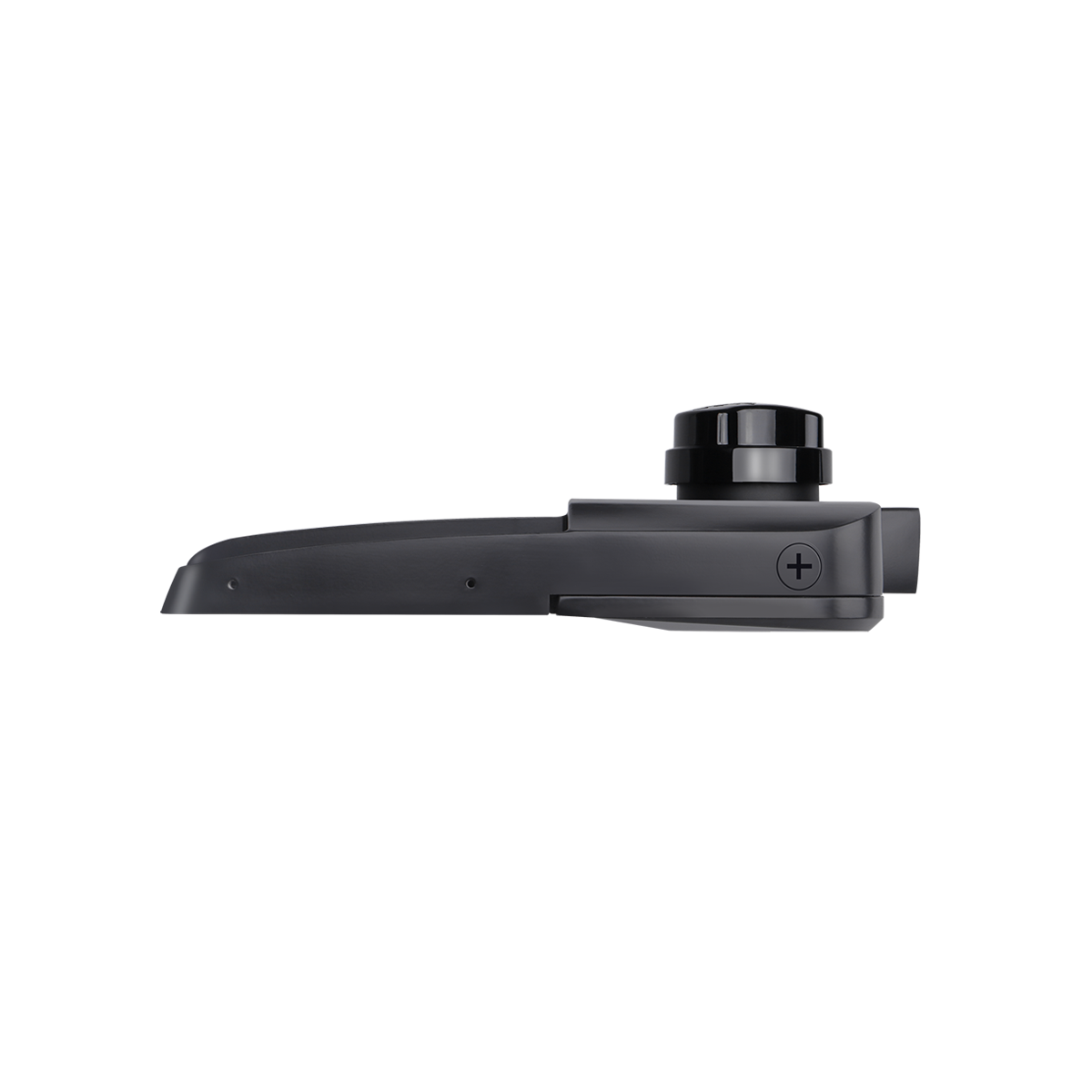

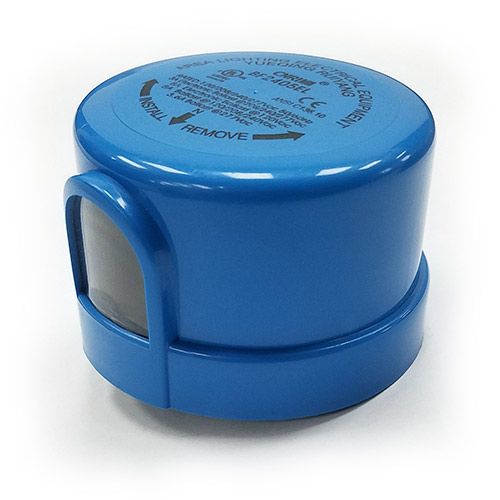

Add an Easy-Install, Twist-Lock Photocell: Ensures the lights are only on when needed.
Enjoy Highly Efficient, Long-Lasting Outdoor Lights
- Luminous efficacy of up to 160 lm/W.

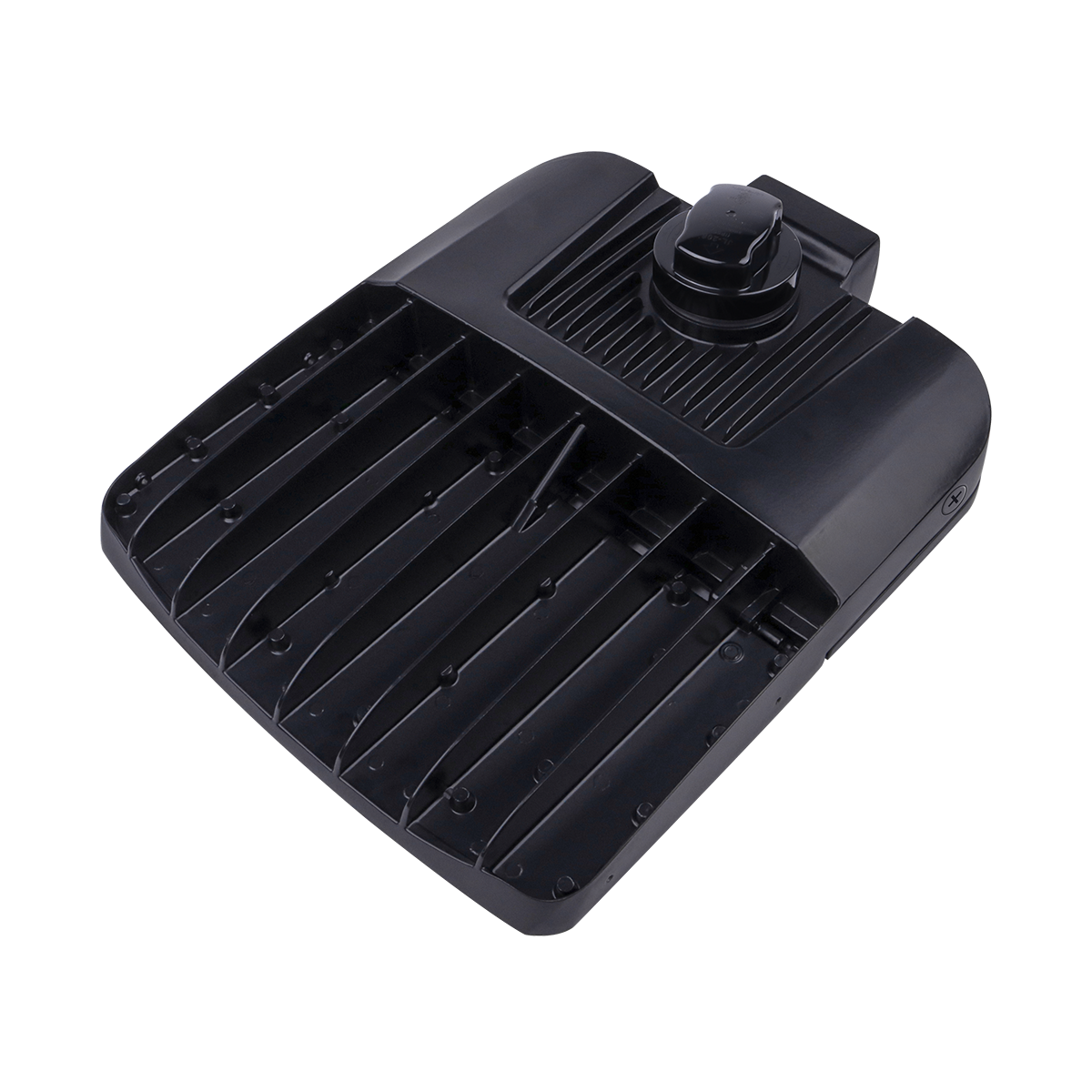

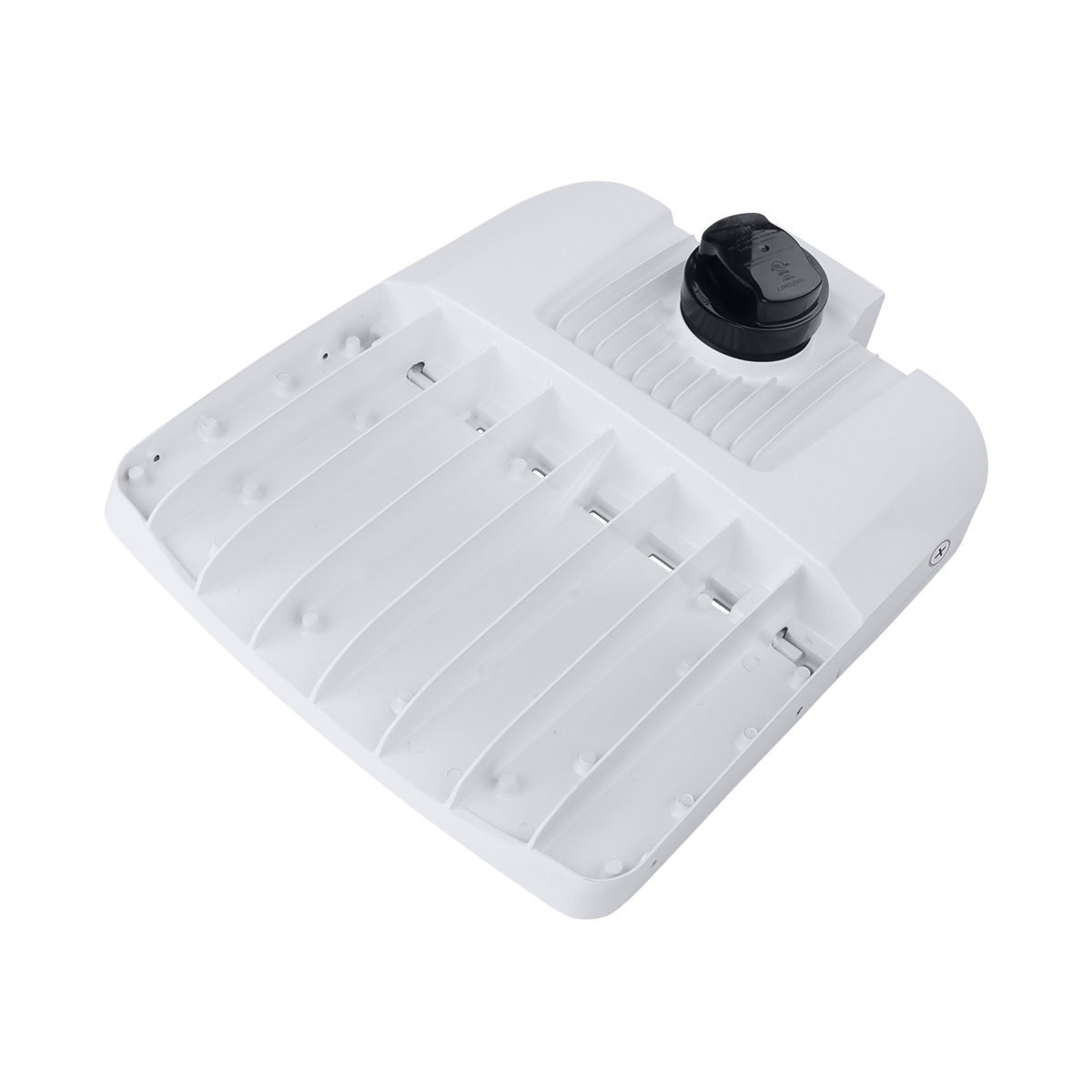

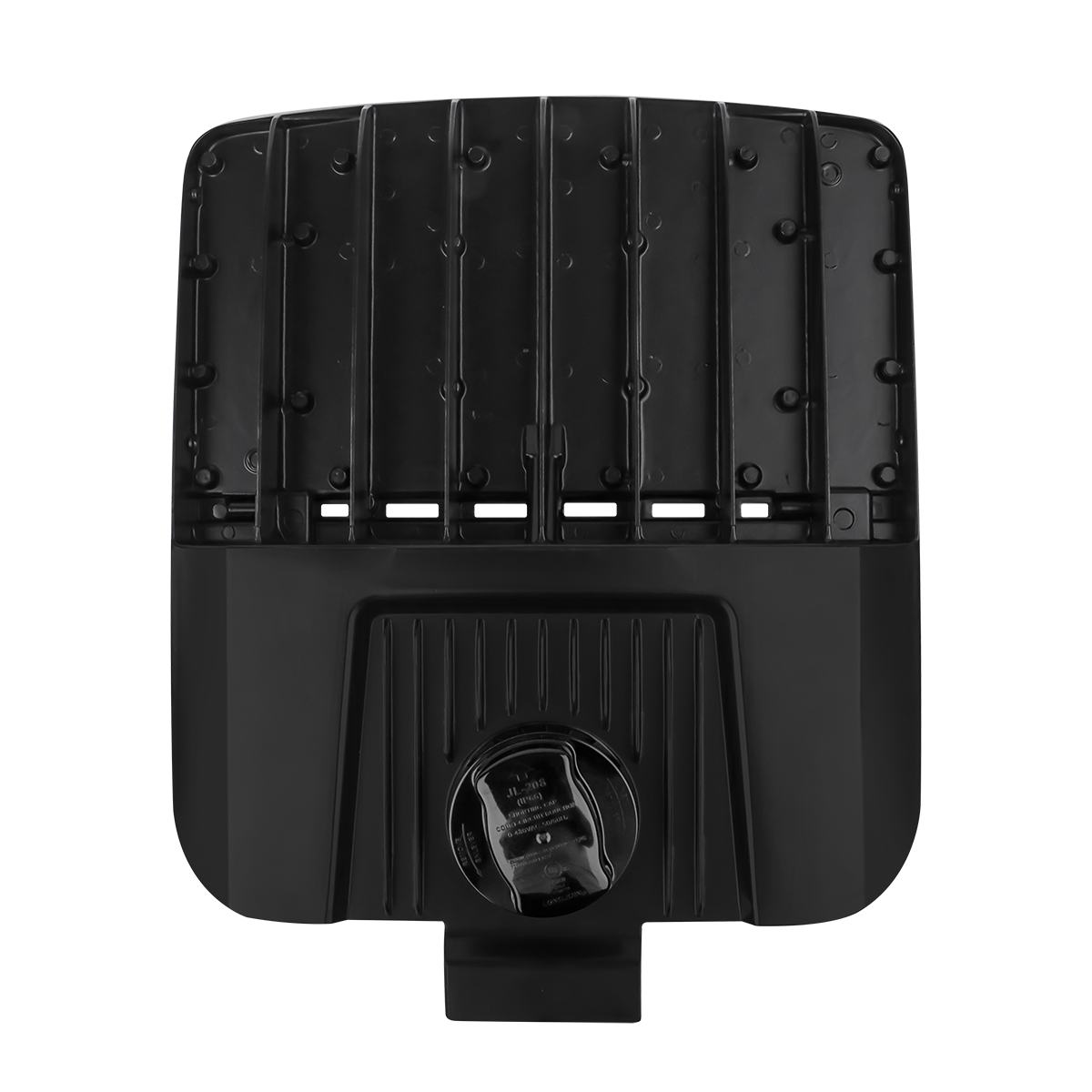

- Rugged die-cast aluminum with flow-through venting.
- Fully sealed against moisture, dust, and contaminants.
- 3G vibration rated & low EPA to minimize wind load requirements.
- Rated for use in temperatures as low as -40°F.
Need 480V? High voltage version available here.
A 24" power cord is included to make installations easier.
Versatile Options

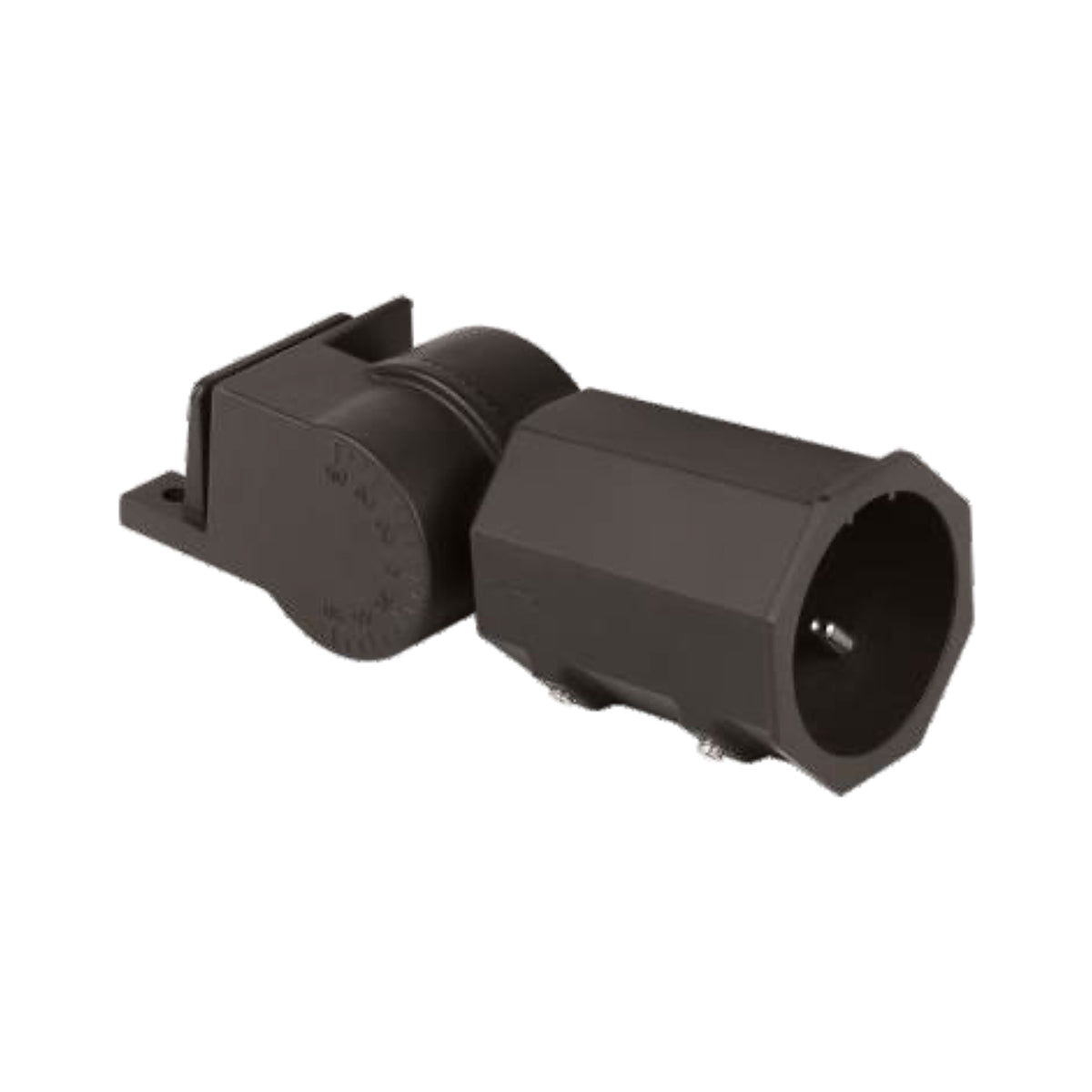

Slipfitter Mount
For use with 2-3/8" OD horizontal steel tenon arms

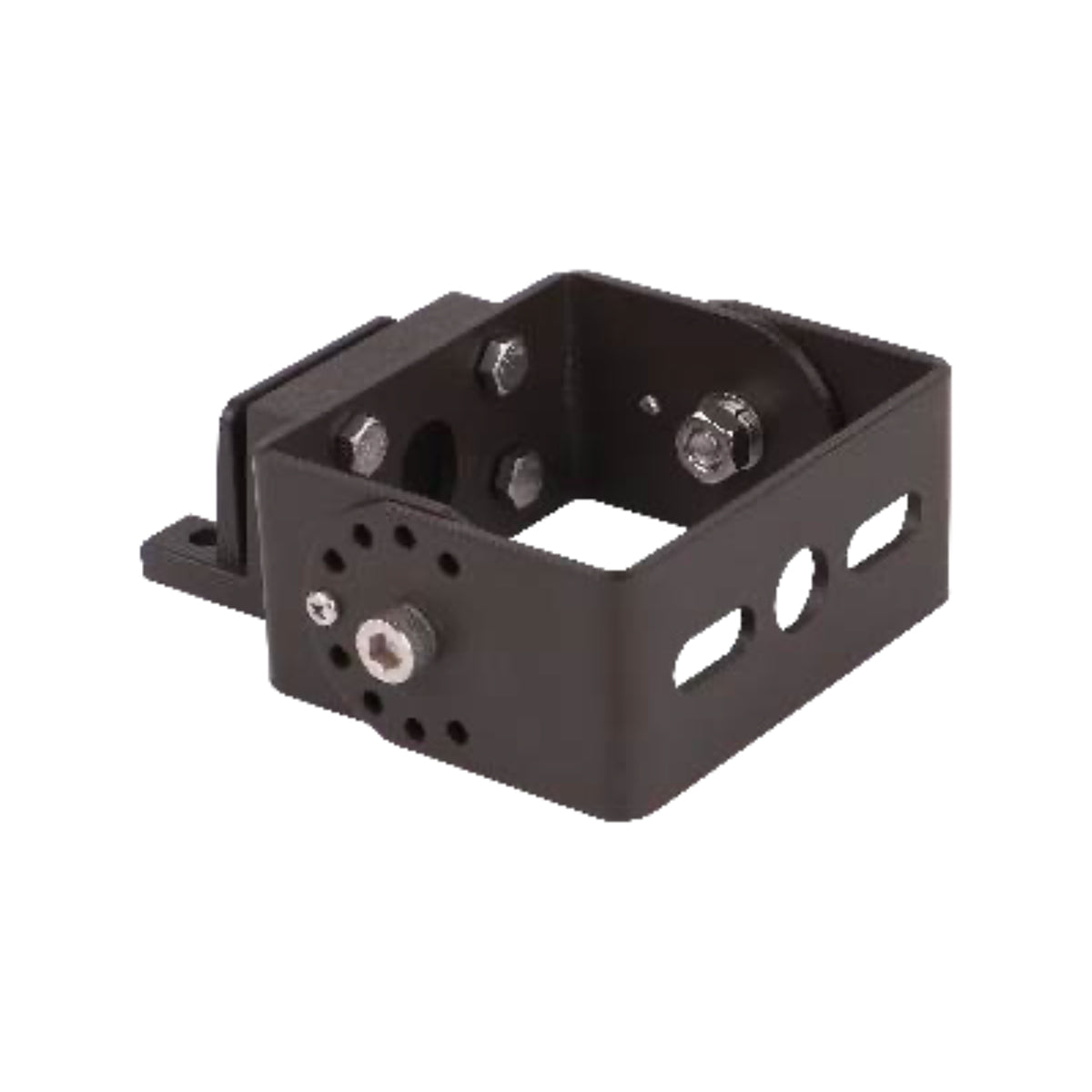

Trunnion Mount
For mounting on walls or poles, with rotational adjustability

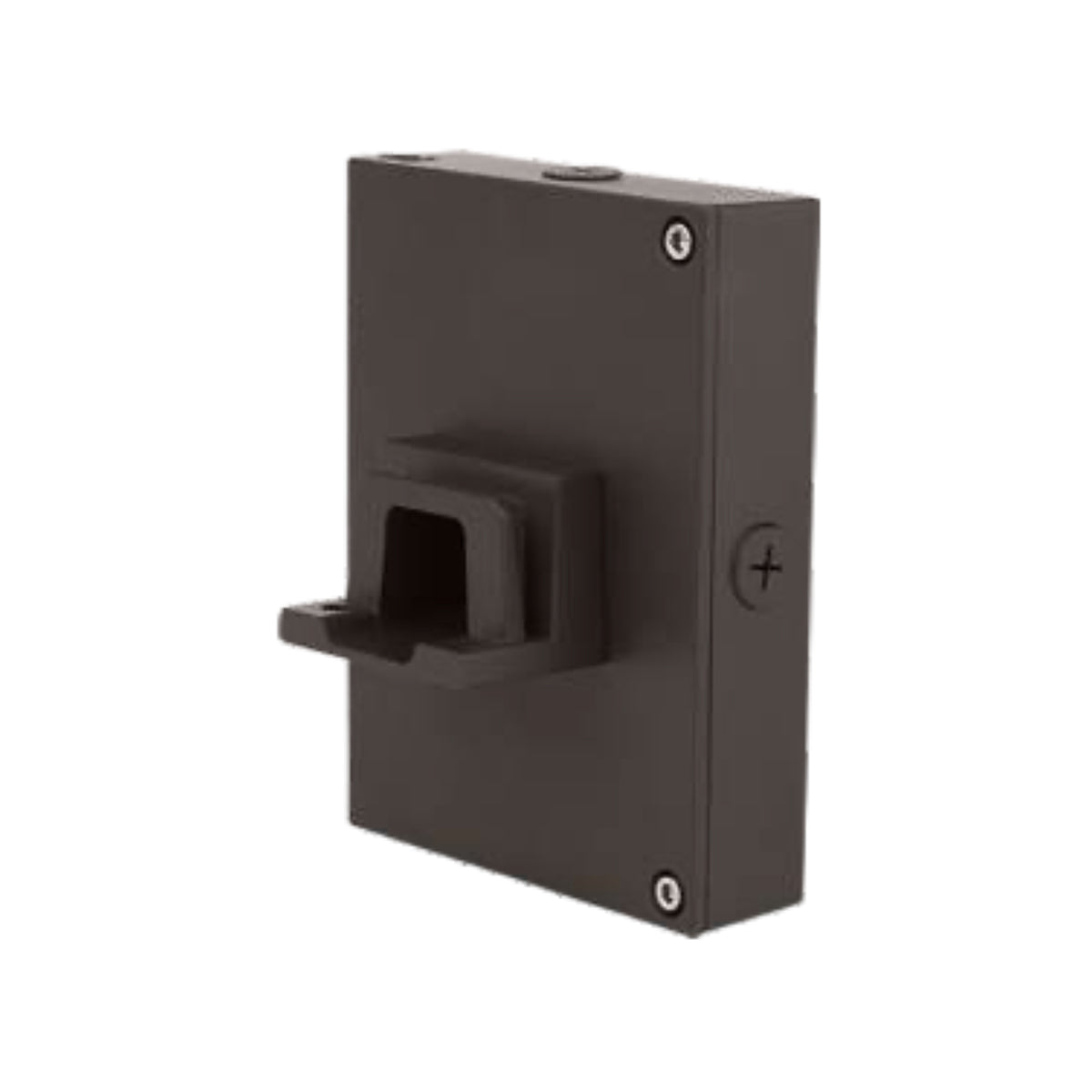

Wall Mount
For building facades - use 0.5" conduit wiring or J-box mounting

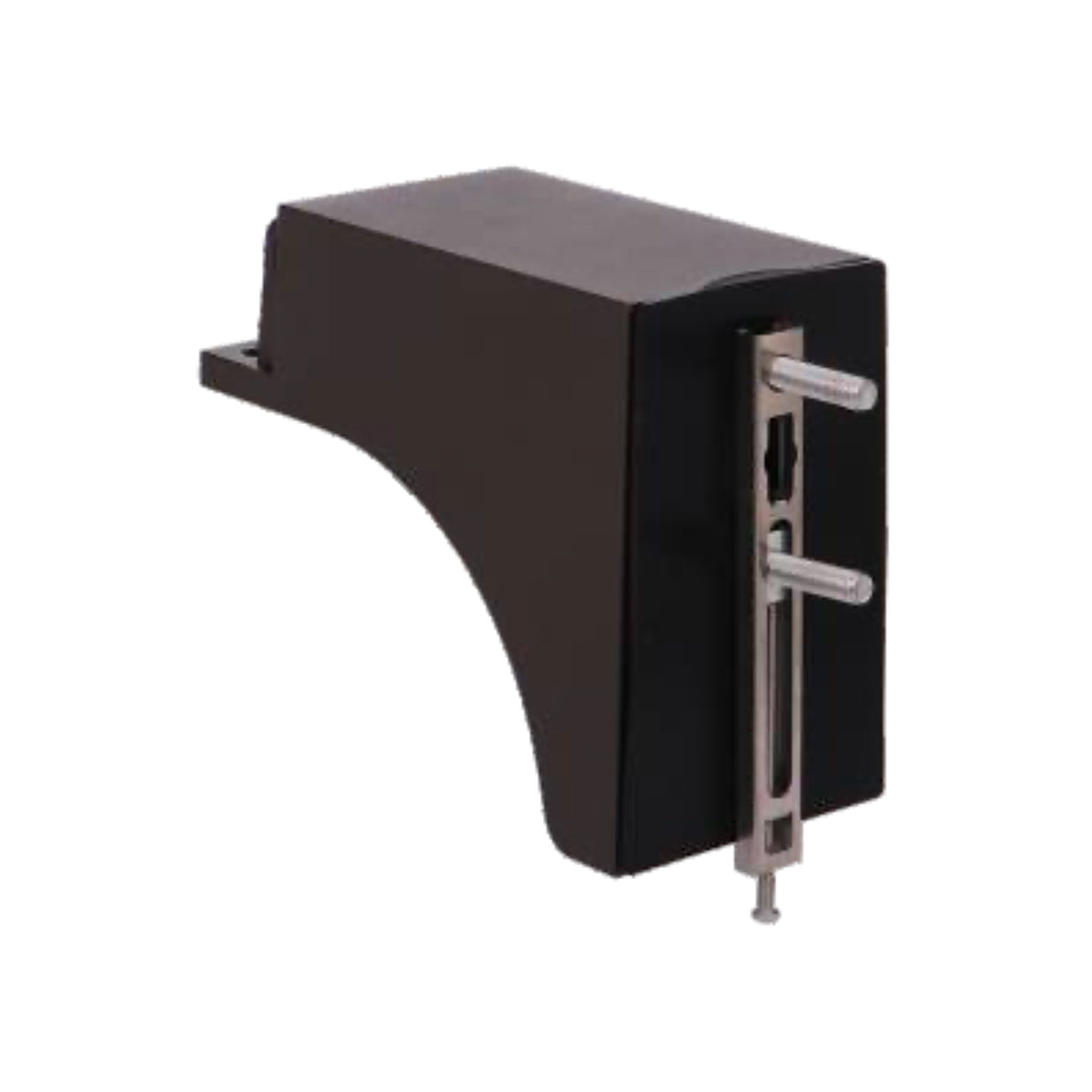

Square & Round Pole Mount
For use with 4" and 5" square or round poles

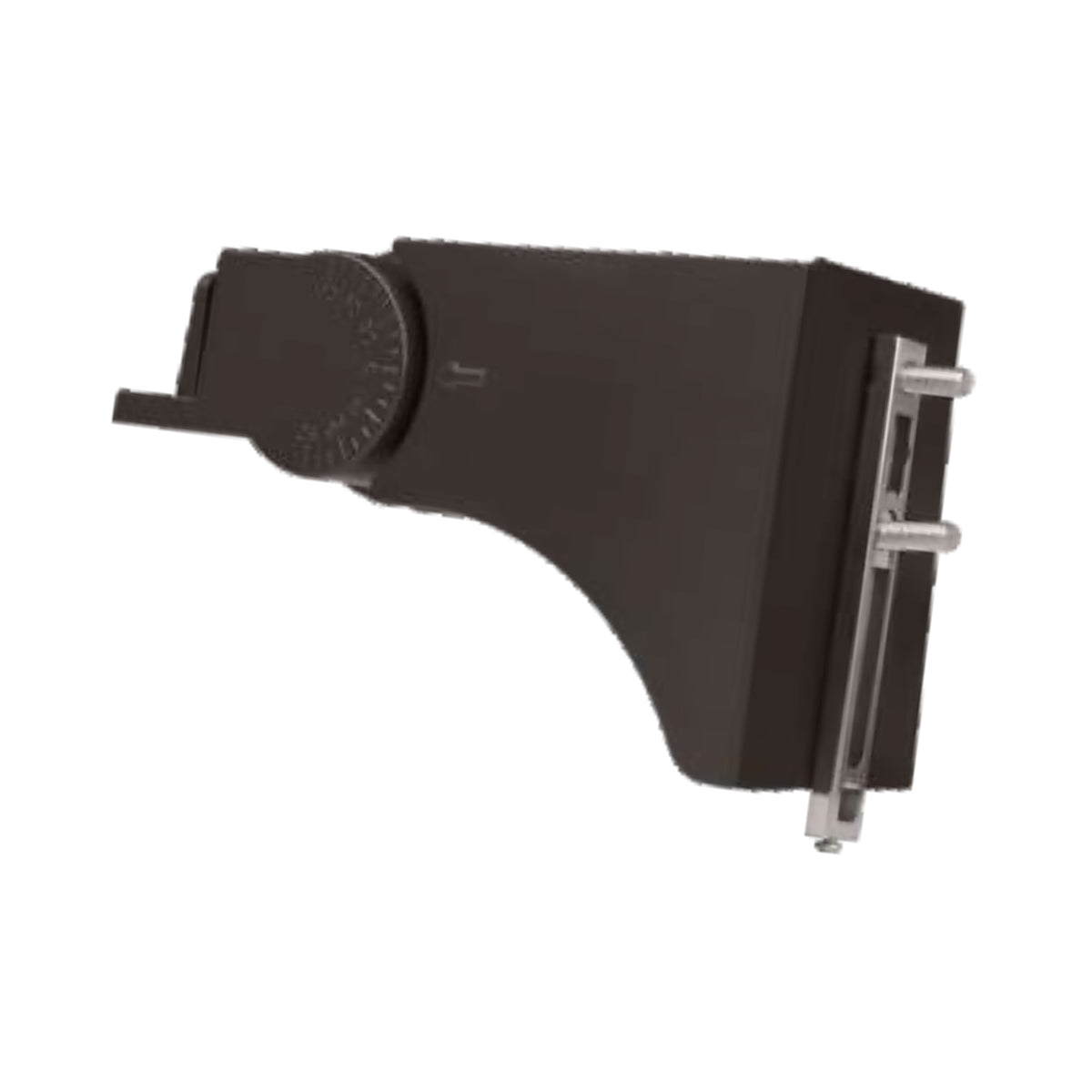

Adjustable Square & Round Pole Mount
For use with 4" and 5" square or round poles; rotatable
