155W Selectable Linear LED High Bay, Ceilings 15 to 20 ft
155W Selectable Linear LED High Bay, Ceilings 15 to 20 ft
155W Selectable Linear LED High Bay, Ceilings 15 to 20 ft
ELEDLights
0 Reviews

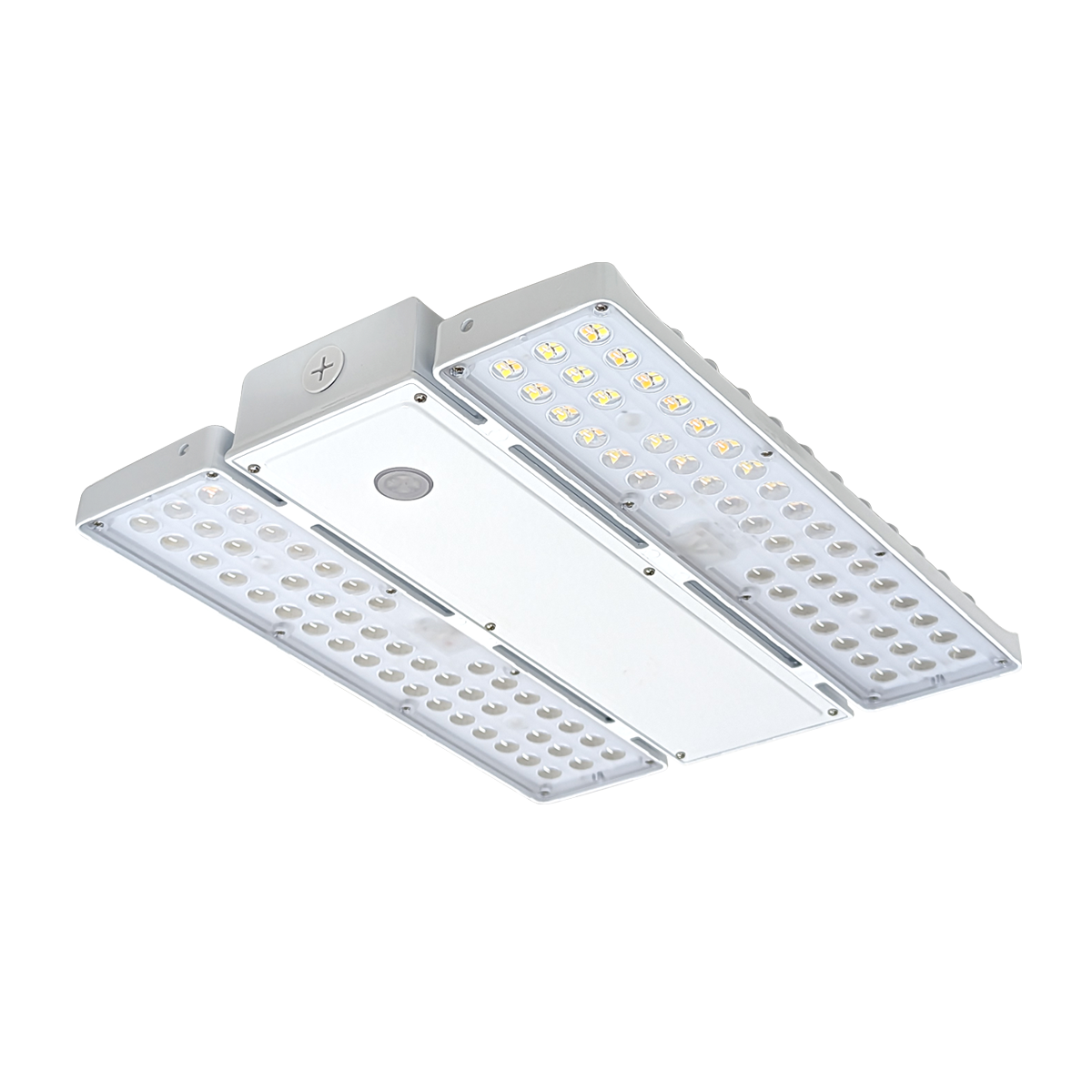

155W Selectable Linear LED High Bay, Ceilings 15 to 20 ft
Regular price
A compact, reliable linear high bay for industrial facilities and warehouses with full dimming.
- 3 wattages (115W/130W/155W) and 2 CCTs (4000K/5000K) — 0-10V dimming, 17,250–23,250 lumens.
- Die-cast aluminum, corrosion-resistant with surge protection — chain suspension kit included.
- 50,000-hour lifespan and 5-year warranty for warehouses, service bays, and gymnasiums.
A compact, reliable linear high bay for industrial facilities and warehouses with full dimming.
- 3 wattages (115W/130W/155W) and 2 CCTs (4000K/5000K) — 0-10V dimming, 17,250–23,250 lumens.
- Die-cast aluminum, corrosion-resistant with surge protection — chain suspension kit included.
- 50,000-hour lifespan and 5-year warranty for warehouses, service bays, and gymnasiums.
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 115W/130/155W selectable |
| Replaces Wattage(s) | Replaces 400W |
| Light Output |
120-277V Model: 155W: 17,250 / 19,500 / 23,250 lumens 277-480V Model: 155W: 16,900 / 19,110 / 22,750 lumens |
| Luminous Efficacy (lm/W) | Up to 150 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | User selectable at install: 4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Beam Angle | 95° |
| Working Environment | Indoors |
| Input Voltage | 120-277V or 277-480V |
| Temperature Rating | -40˚F to 122˚F |
| Housing Material | Die-cast aluminum with powder coat corrosion-resistant finish and high transmittance polycarbonate lens |
| Housing Color | White |
| Dimensions | 14" long x 11.5" wide x 2.1" tall |
| Weight | 5.5 lbs |
| Certification | DLC 5.1 Premium, UL |
| Warranty | 5 Years |
Data SheetDetails

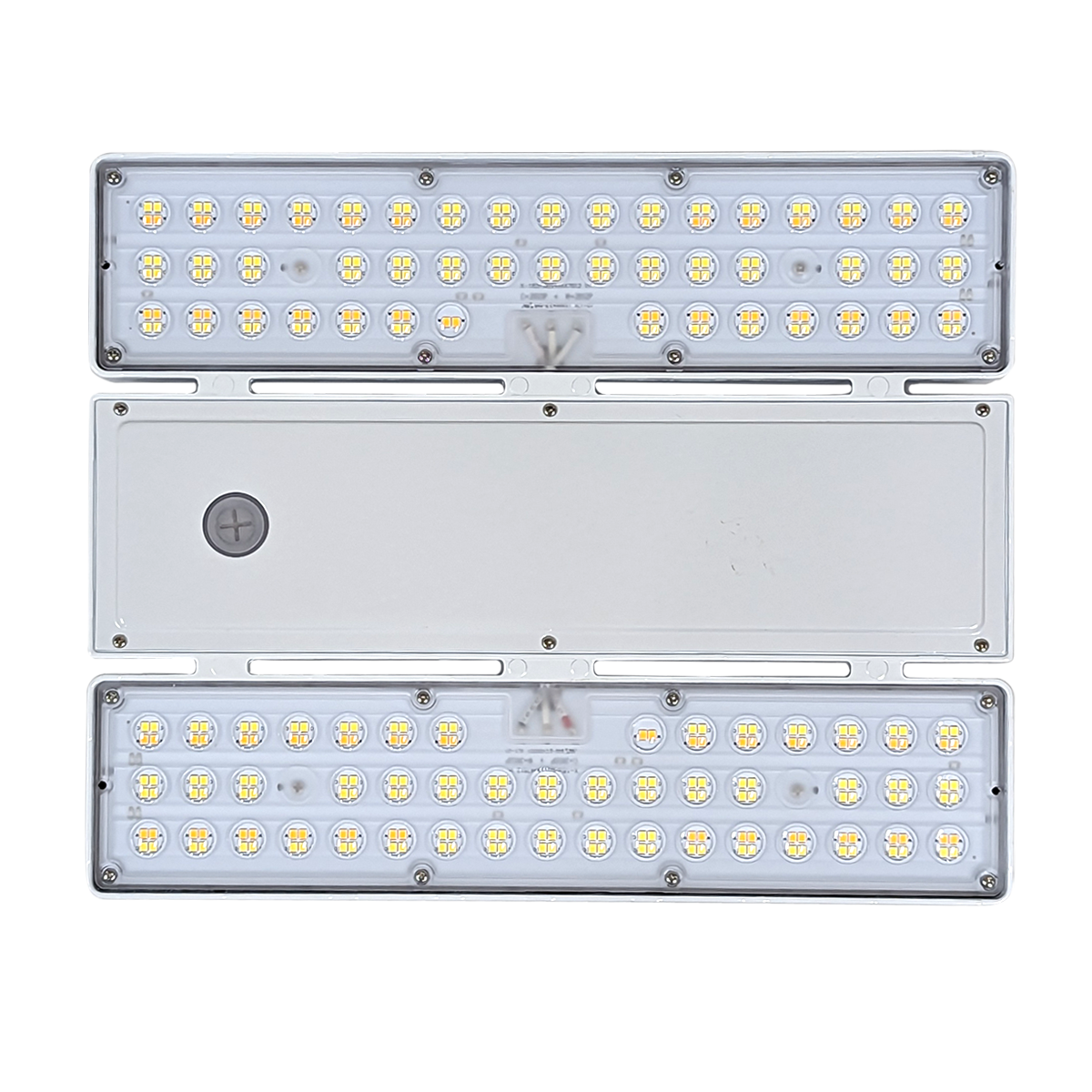

Versatile Linear LED High Bay Outlasts & Outperforms 400W HID & Fluorescent High Bays
- Average Lifespan of 50,000 Operating Hours
- Protected by a 5-Year Warranty
- Built-In Surge Protection

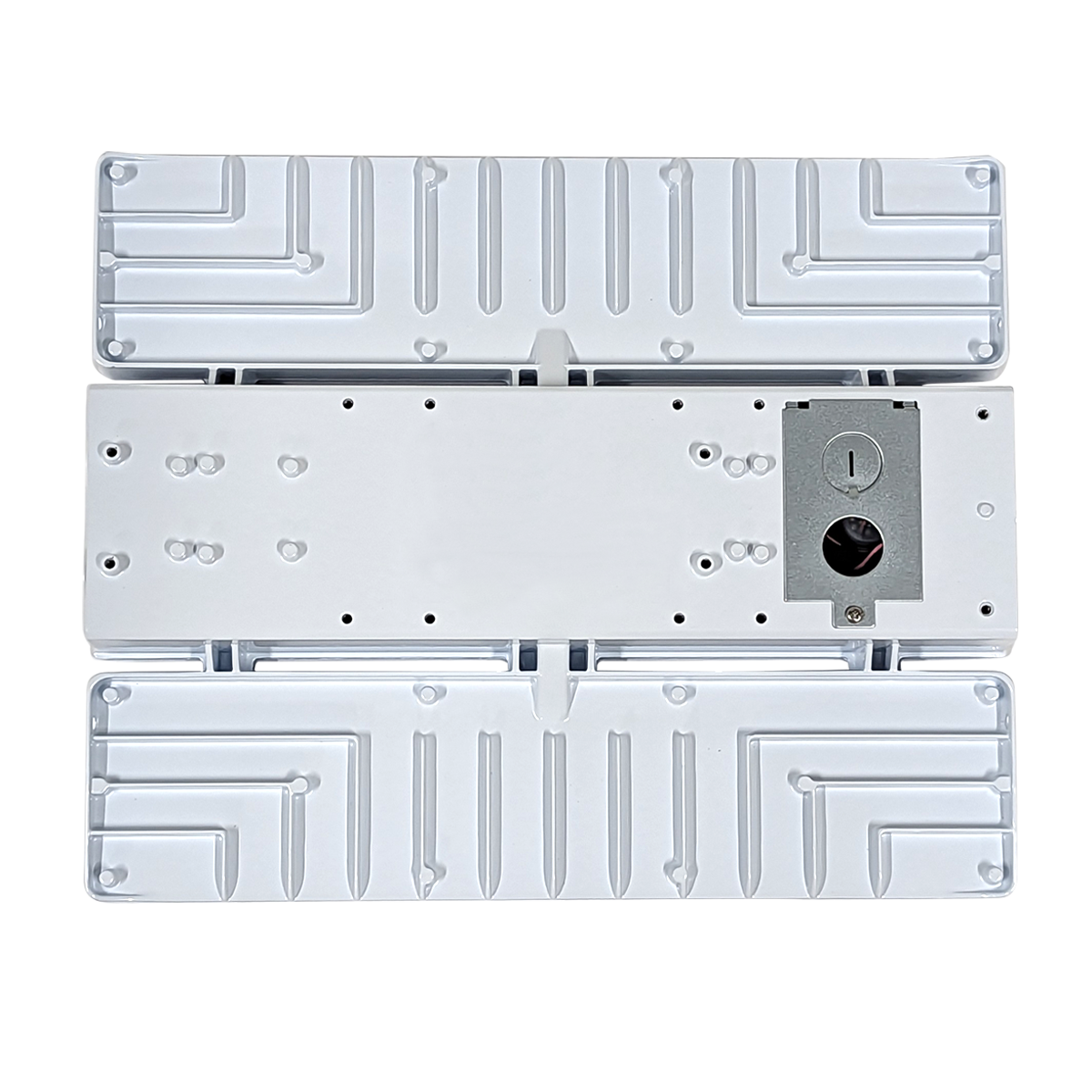

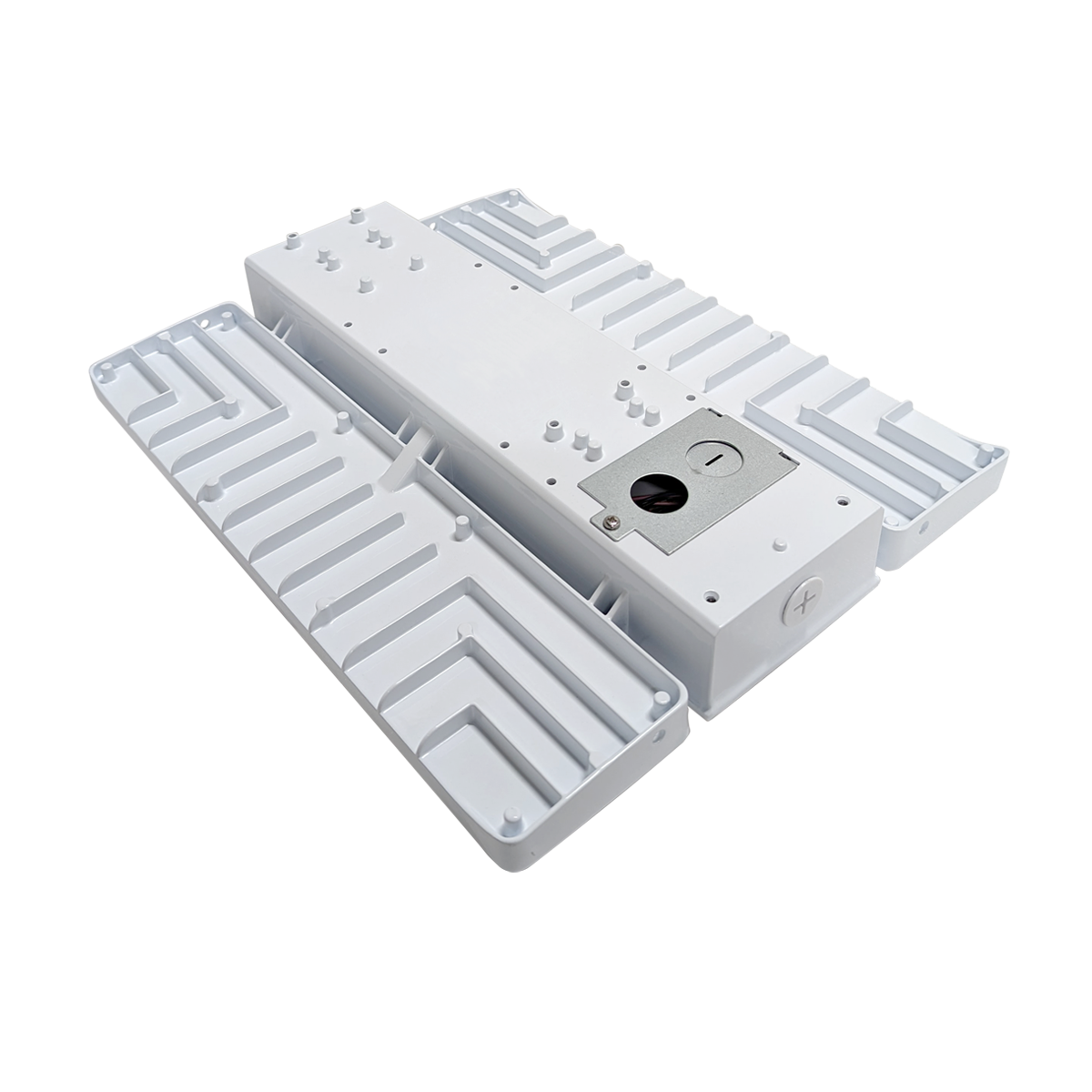

- Die-Cast Aluminum, Corrosion-Resistant Housing

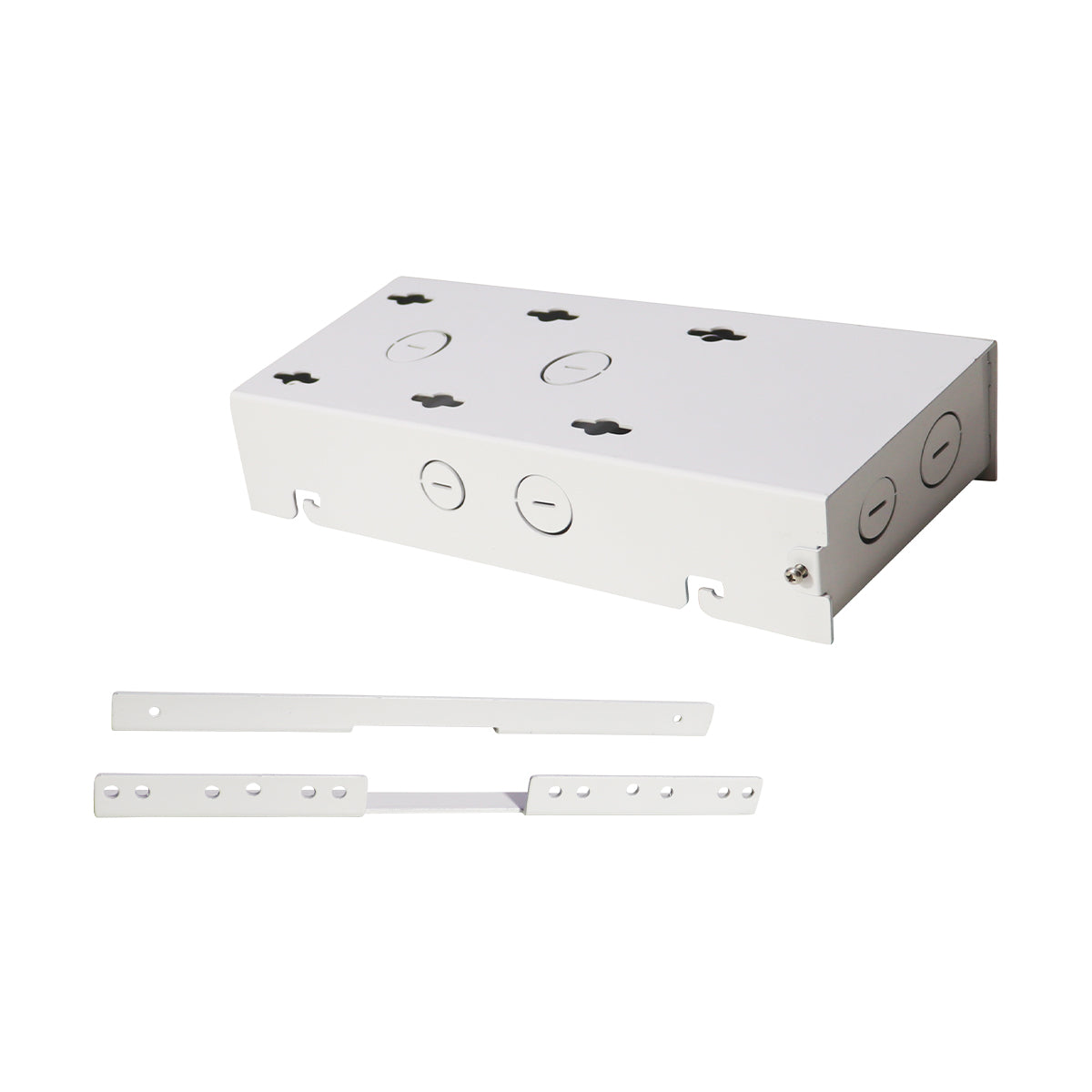

- Easy Install with Included Suspension Kit or Surface Mount/Pendant Mount Accessory
-
Need high voltage (480V)? Call 215-355-7200.

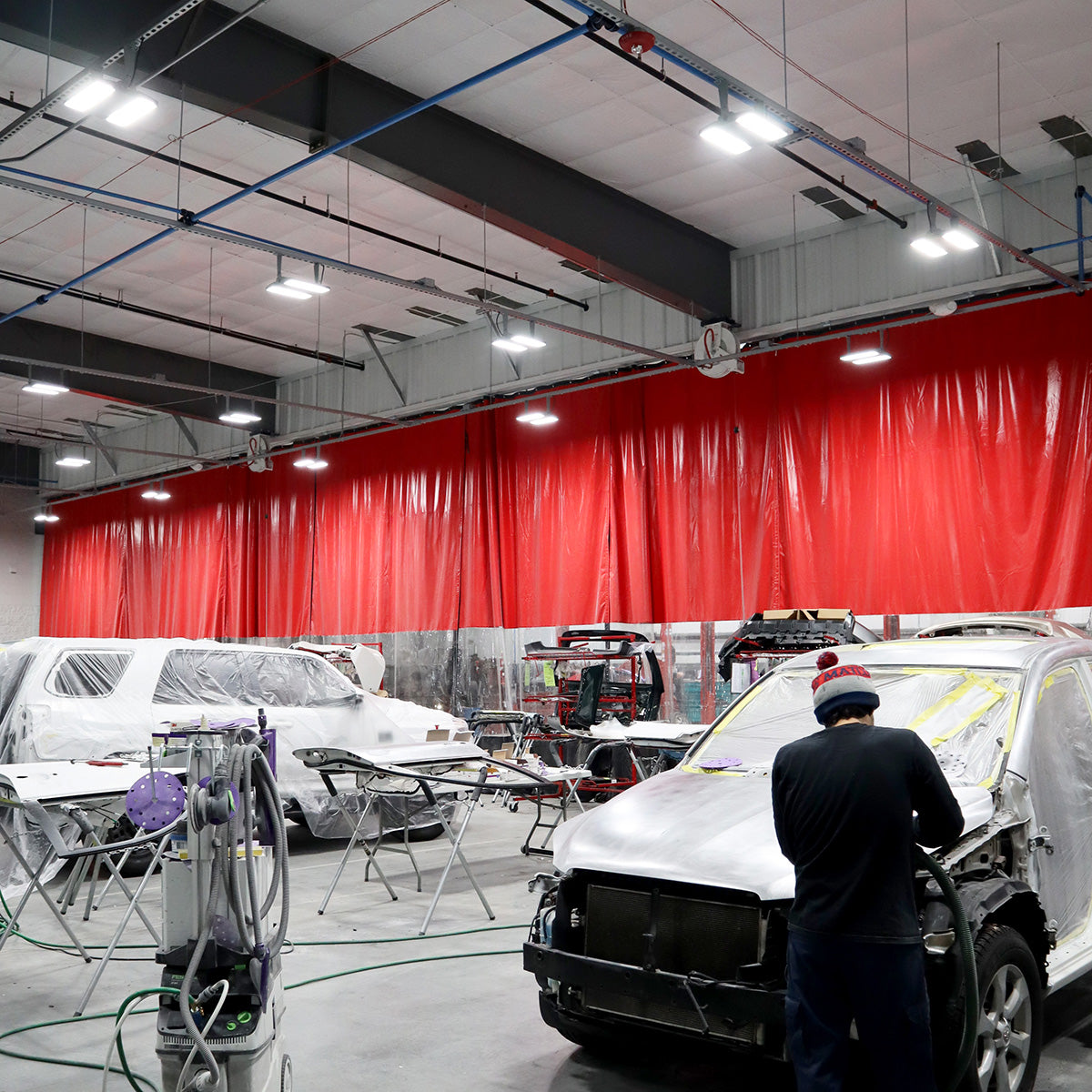

Light up your industrial facility, warehouse, car service bays, and more.
×
×
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
×
